One Piece Ball Valves

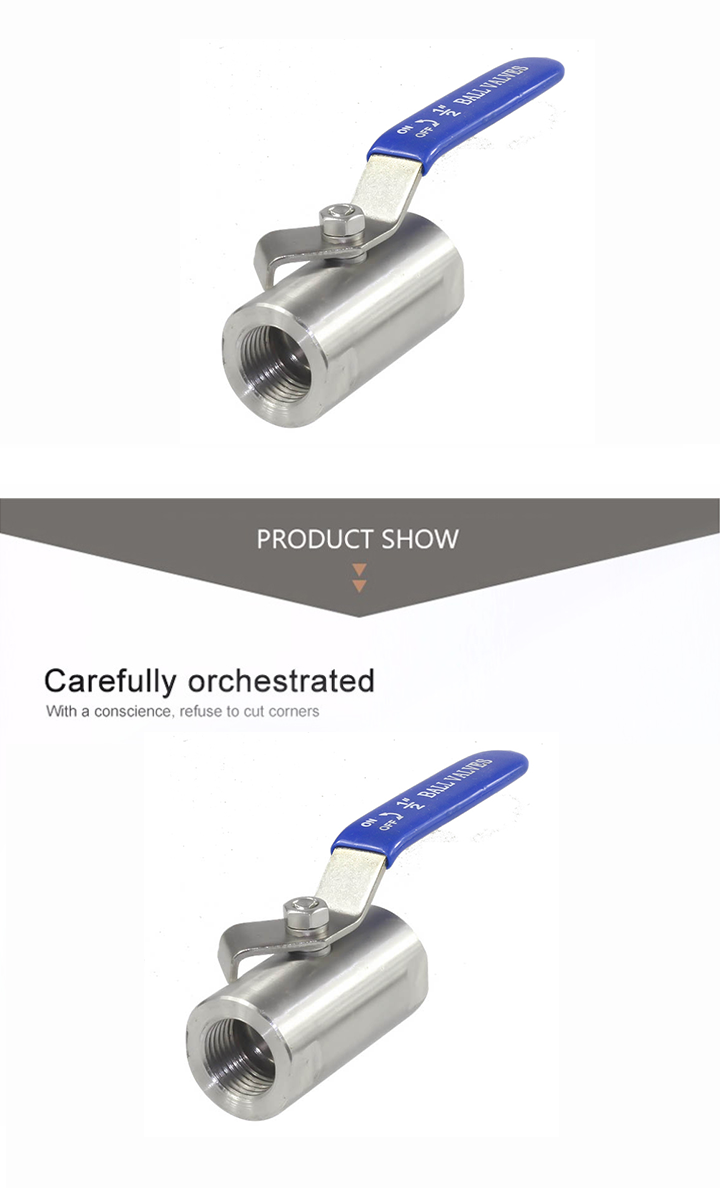

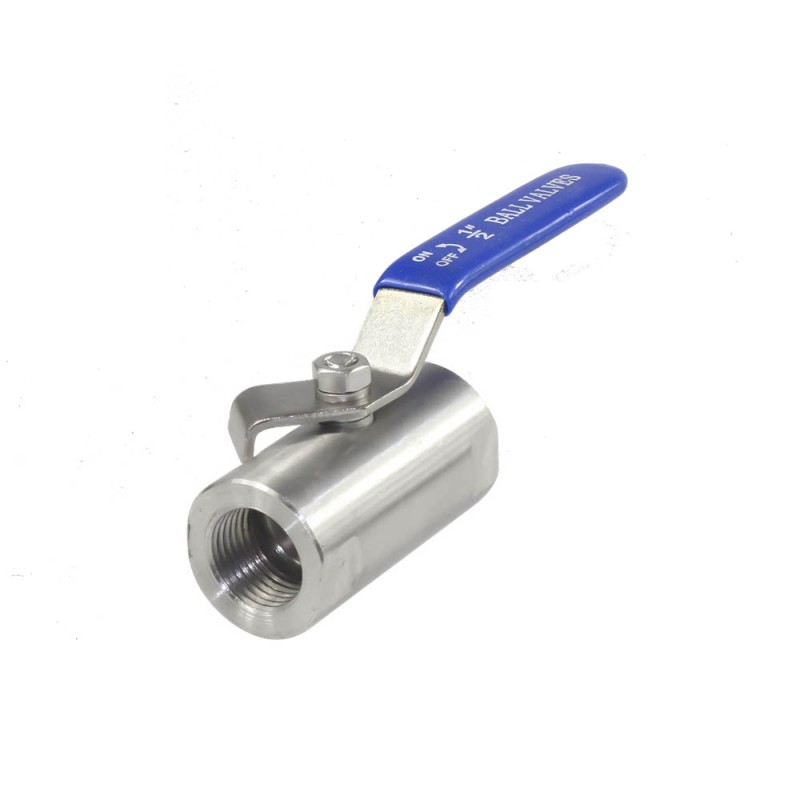

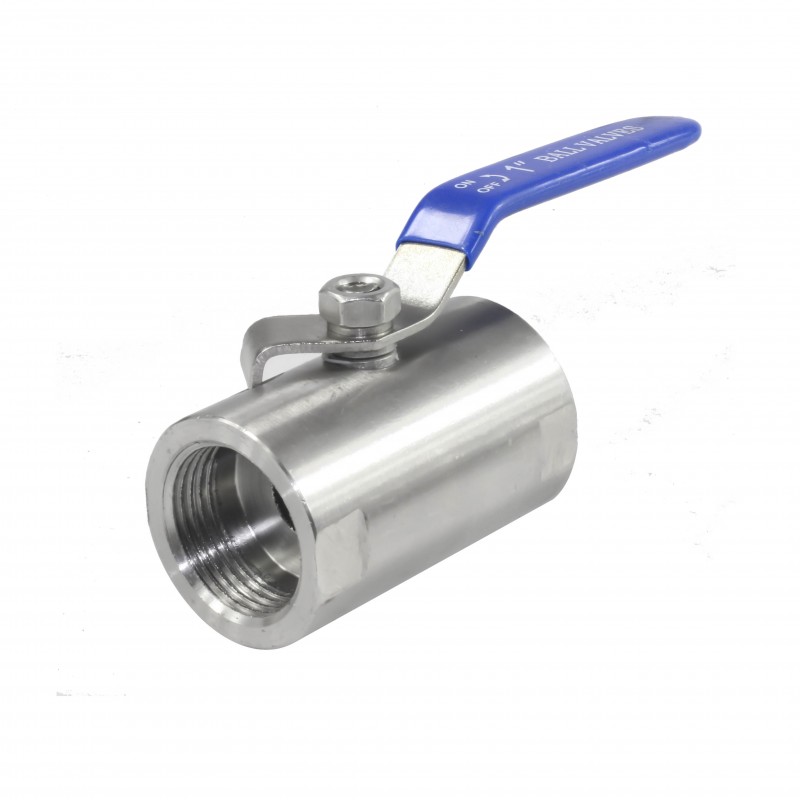

SS304 SS316 Stainless Steel One Piece Female Threaded Ball Valve
- NQUIRY
Model NO.:D016001001015D
Min. Order:1
Port:Ningbo, China
Production Capacity:5000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Model NO.:D016001001015D
HS Code:8481804090
Trademark:FURUI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Products Name:Products Name:SS304 SS316 Stainless Steel One Piece Female Threaded Ball Valve
1/2 Inch cf8m One Piece Female Threaded Ball Valve
Stainless Steel SS304 SS316 One Piece Female Threaded Ball Valve
Technical Parameter
| Material | SUS201, SUS304,SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc. |
| Size | 1/4" -4" (DN6-DN100) |
| pressure | 1000psi |
| Temperature range | -20-300 degree C |
| connection | Butt weld |
| sealing | PTFE,RPTFE,PPL ETC |
| Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
| Certification | CE, ISO, our factory has been inspected by leyon and TUV |
| Locking | With or without |
| Capacity to produce | 100,000.00pcs/week |
| Main products | Includes ball valve, check valve, gate valve, strainer, etc. |
| Application | Suitable for water, oil, air and some corrosive liquid etc |
| Buyer's drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Or as buyer's requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
Applications
Suitable for water, oil, air and some corrosive liquid etc
Operating Principle
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
