Flanged Ball Valves

Home    Products   Manual Ball Valves   Flanged Ball Valves

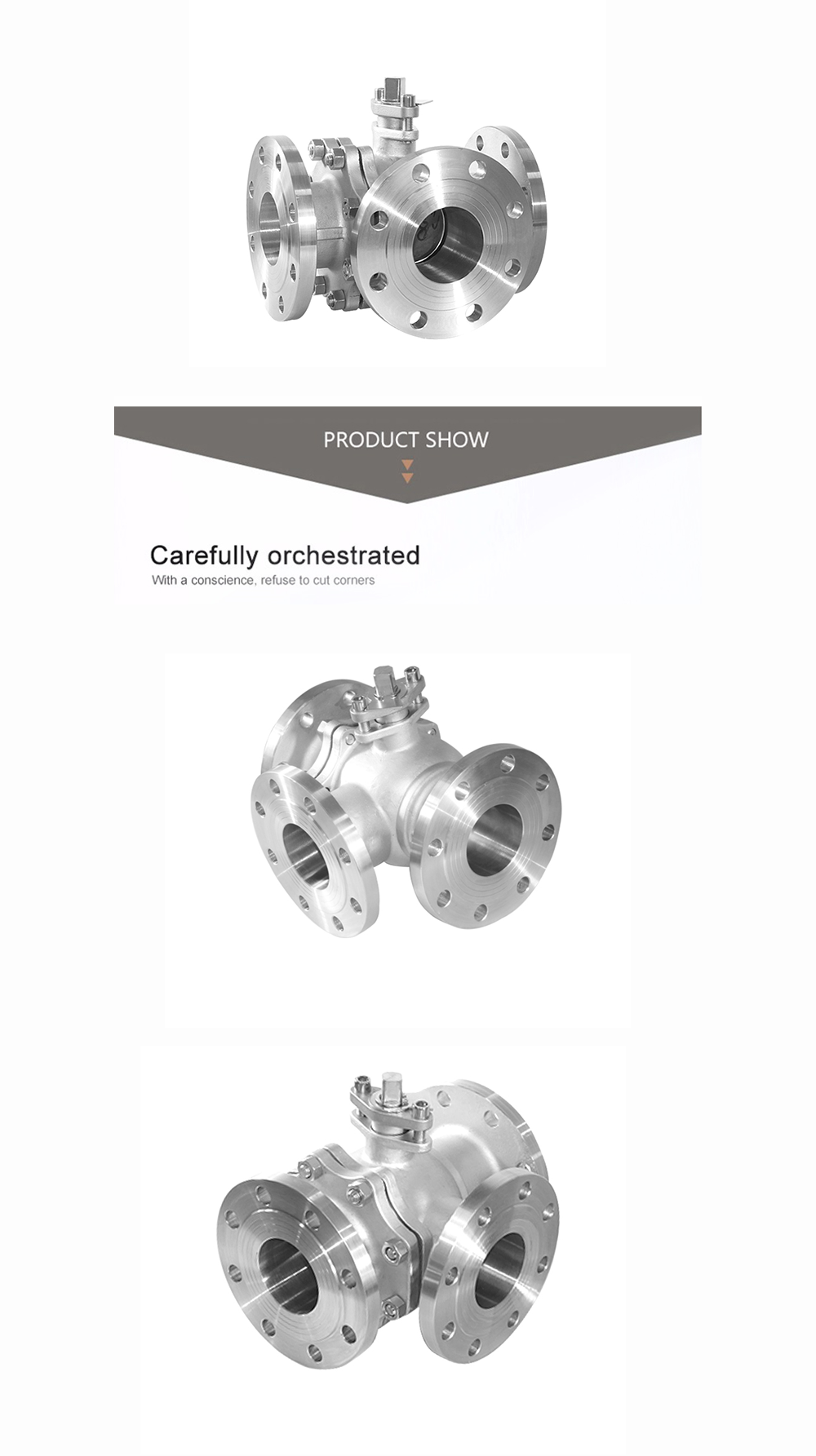

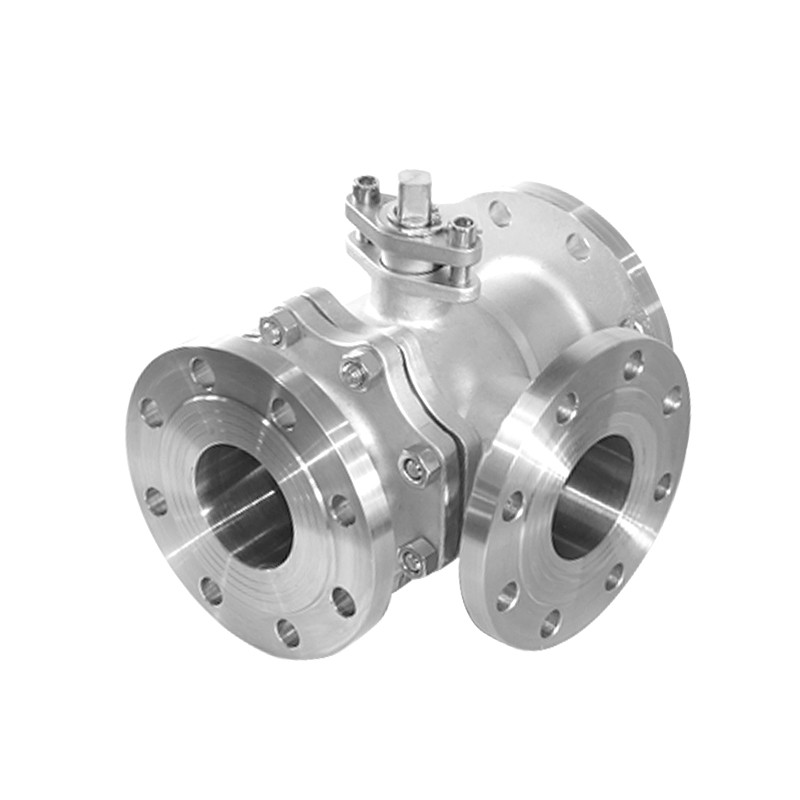

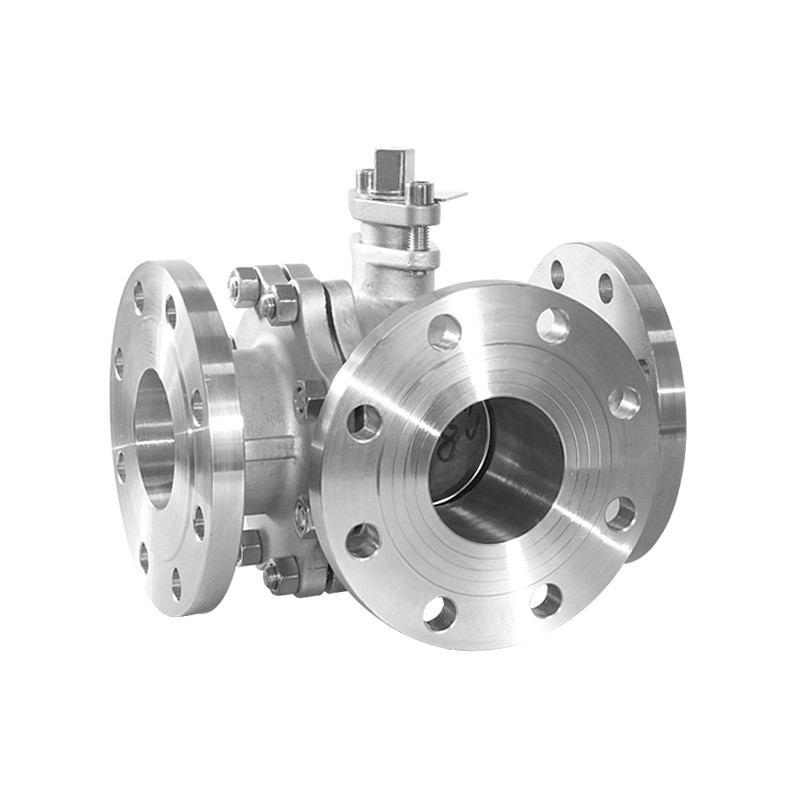

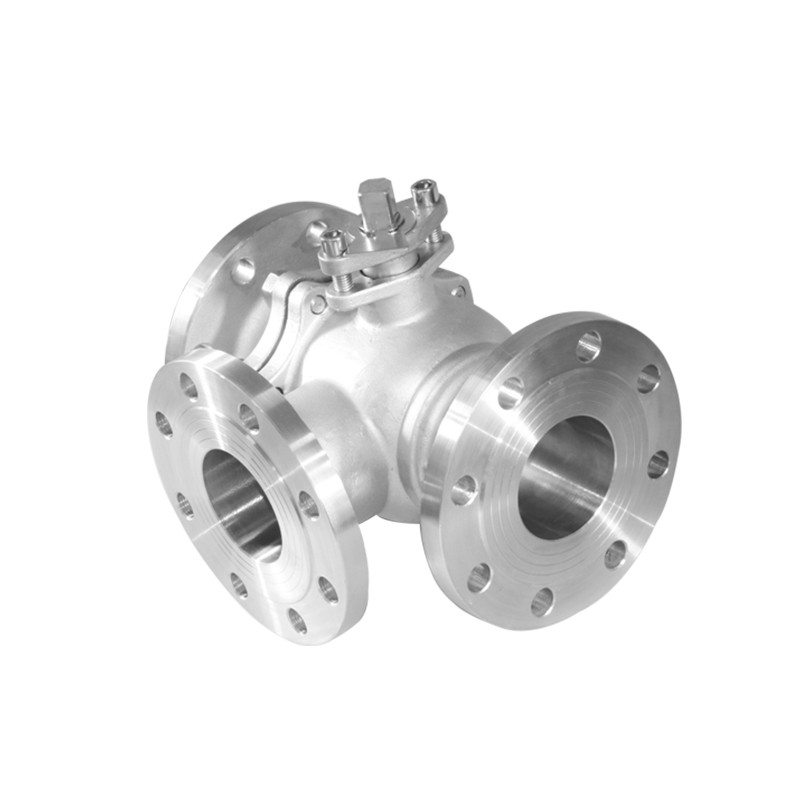

High Quality Three Piece Three Way Flanged Ball Valve

    Model NO.:D016001001014D

    Min. Order:1

    Port:Ningbo, China

    Production Capacity:3000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    <p><span>Material</span><strong>:</strong><em>stainless steel</em></p> <p><span>Pressure</span><strong>:</strong><em>Medium Pressure</em></p> <p><span>Power</span><strong>:</strong><em>manual</em></p> <p><span>Media</span><strong>:</strong><em>Water</em></p> <p><span>Application</span><strong>:</strong><em>General</em></p> <p><span>Structure</span><strong>:</strong><em>BALL</em></p>
  • NQUIRY
Basic Info

    Model NO.:D016001001014D

    <p><span>Application</span><strong>:</strong><em>General</em></p> <p><span>Temperature of Med</span><strong>:</strong><em>Low Temperature</em></p> <p><span>Port Size</span><strong>:</strong><em>DN50-DN1200</em></p> <p><span>Working temperature</span><strong>:</strong><em>:&le;200℃</em></p> <p><span>Body/Bonnet/Disc</span><strong>:</strong><em>CF8/CF8M/CF3/CF3M Etc.</em></p> <p><span>Seat</span><strong>:</strong><em>PTFE</em></p> <p><span>Stem</span><strong>:</strong><em>F304 F316 F304L F316L</em></p> <p><span>Ball</span><strong>:</strong><em>F304 F316 F304L F316L</em></p>

    HS Code:8481804090

    Trademark:FURUI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

Description

    Products Name:Products Name: Full bore ANSI 150 with ISO Stainless Steel 2PC Flanged Ball Valve High platform

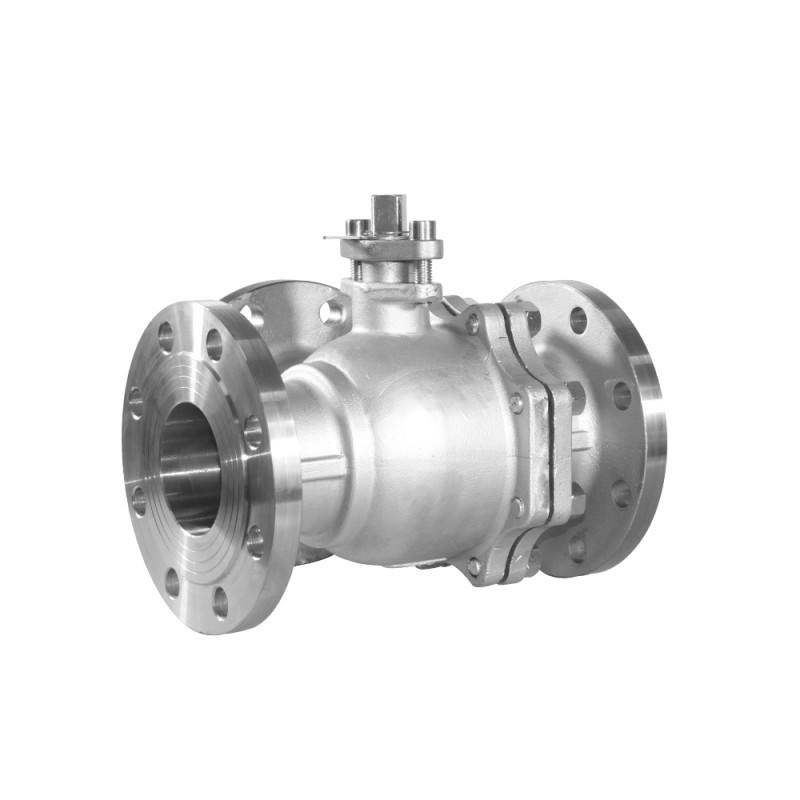

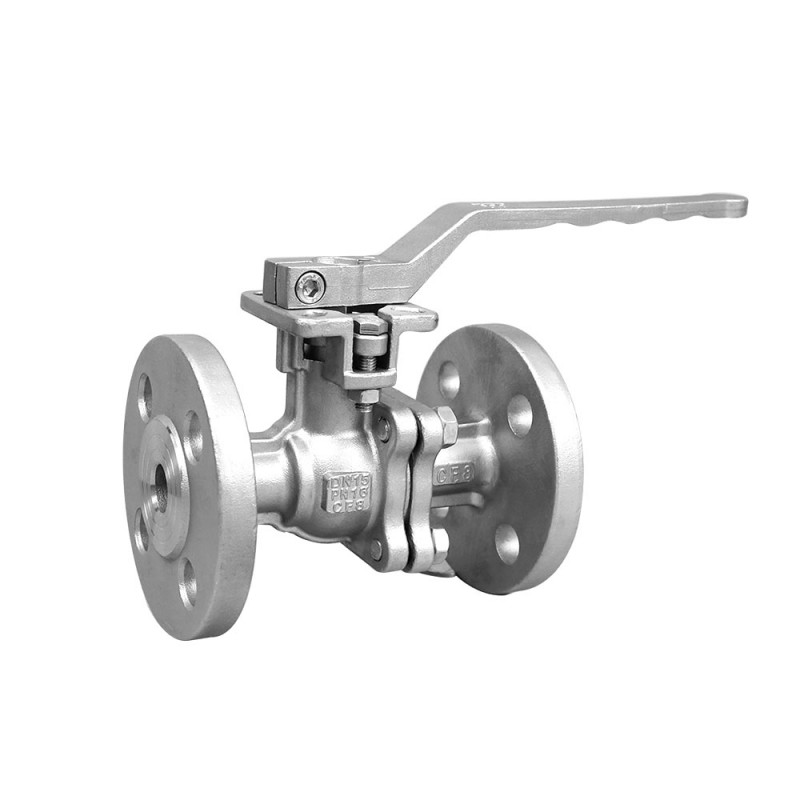

    Full Bore Stainless Steel 2PC Flanged Ball Valve
    Stainless Steel cf8m 2PC Flanged Ball Valve

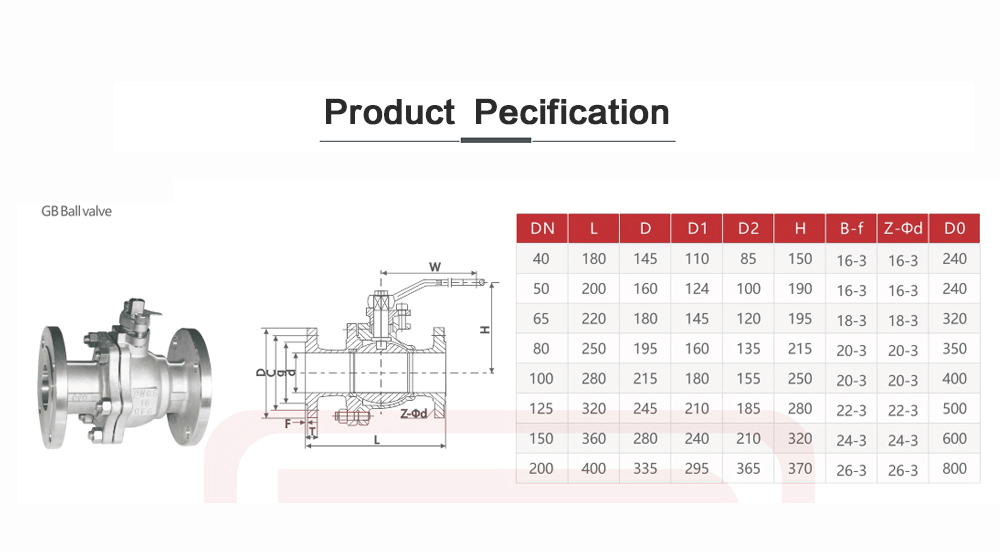

    Technical Parameter

    ITEM PART MATERIAL
    1 Location Patch 304
    2 Gland Nut CF8M CF8 WCB
    3 Stem Packing PTFE/RPTFE/PPL
    4 Thrust Washer PTFE/RPTFE/PPL
    5 Stem 316 304 201
    6 Cap CF8M CF8 WCB
    7 Nut 304 304 201
    8 Bolt 304 304 201
    9 Gasket PTFE/RPTFE/PPL
    10 Ball 316 304 201
    11 Ball Seat PTFE/RPTFE/PPL
    12 Body CF8M CF8 WCB
    13 Handle CF8M CF8 CF8
    14 Screws Bolt 304 304 201

    Product application

    Applications

    Suitable for water, oil, air and some corrosive liquid etc



    Operating Principle

    Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.





    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products
