Pneumatic Flanged Ball Valves
Home Products Pneumatic Ball Valves Pneumatic Flanged Ball Valves

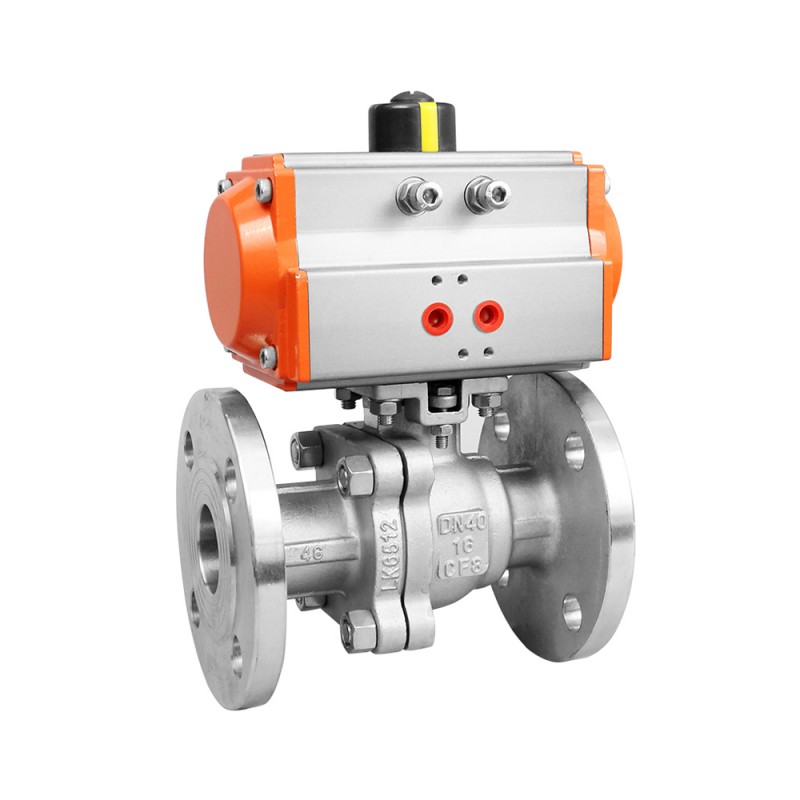

1/2 Inch High Quality pneumatic Two-Piece flanged actuator ball valve
- NQUIRY
Model NO.:D016001002007D
FOB Price:US $1000-2000 / Piece
Min. Order:1
Port:Ningbo, China
Production Capacity:100sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Model NO.:D016001002007D
HS Code:8413709990
Trademark:FURUI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Products Name:Products Name:1/2 Inch High Quality pneumatic Two-Piece flanged actuator ball valve
SS304 SS316 1000 WOG PSI pneumatic Two-Piece flanged actuator ball valve
Actuator 1000 WOG PSI pneumatic Two-Piece flanged actuator ball valve
Technical Parameter
| ITEM | PART | MATERIAL | ||
| 1 | Location Patch | 304 | ||
| 2 | Gland Nut | CF8M | CF8 | WCB |
| 3 | Stem Packing | PTFE/RPTFE/PPL | ||
| 4 | Thrust Washer | PTFE/RPTFE/PPL | ||
| 5 | Stem | 316 | 304 | 201 |
| 6 | Cap | CF8M | CF8 | WCB |
| 7 | Nut | 304 | 304 | 201 |
| 8 | Bolt | 304 | 304 | 201 |
| 9 | Gasket | PTFE/RPTFE/PPL | ||
| 10 | Ball | 316 | 304 | 201 |
| 11 | Ball Seat | PTFE/RPTFE/PPL | ||
| 12 | Body | CF8M | CF8 | WCB |
| 13 | Handle | CF8M | CF8 | CF8 |
| 14 | Screws Bolt | 304 | 304 | 201 |
Applications
Suitable for water, oil, air and some corrosive liquid etc
Operating Principle
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
