Pneumatic Three Piece Ball Valves

Home    Products   Pneumatic Ball Valves   Pneumatic Three Piece Ball Valves

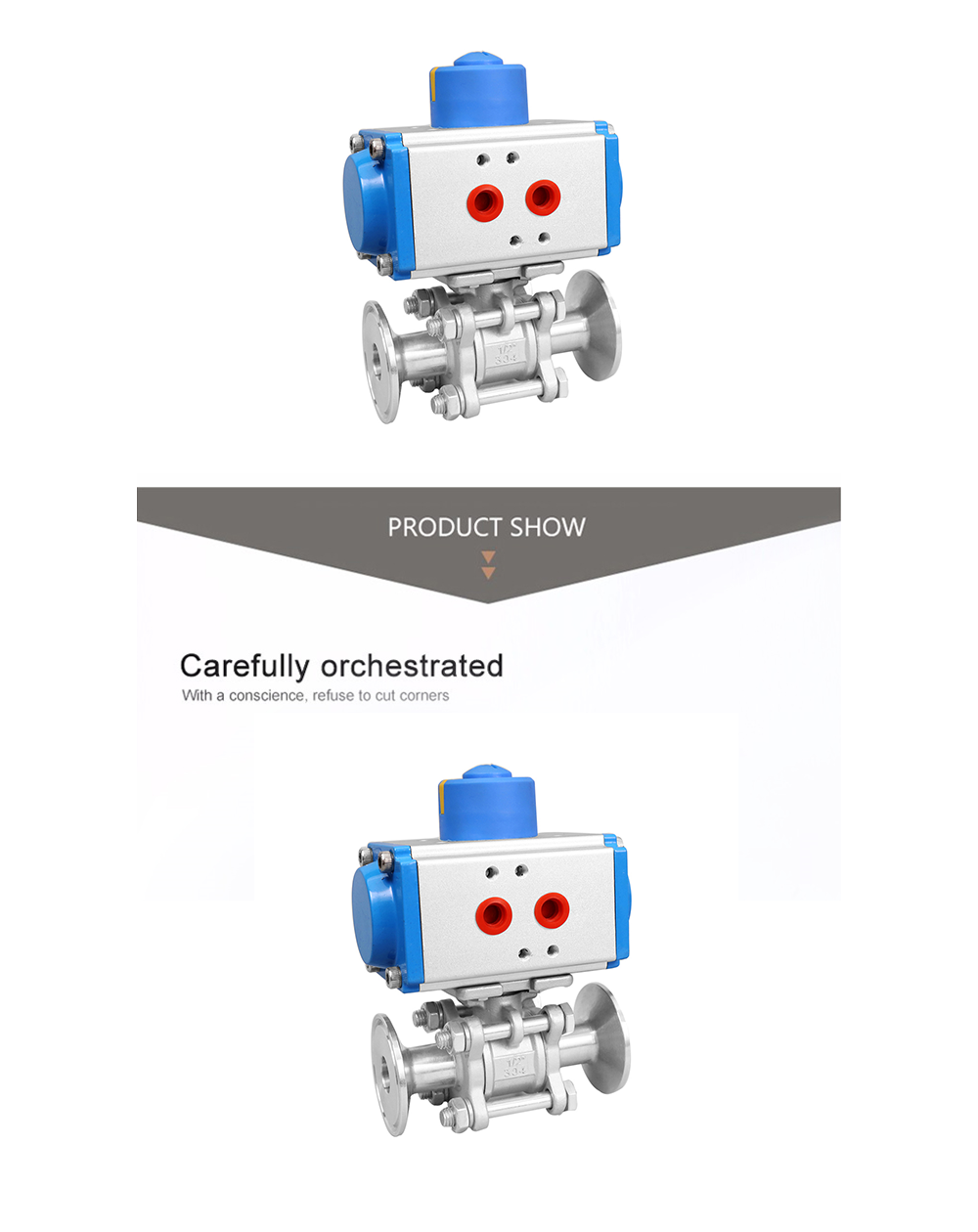

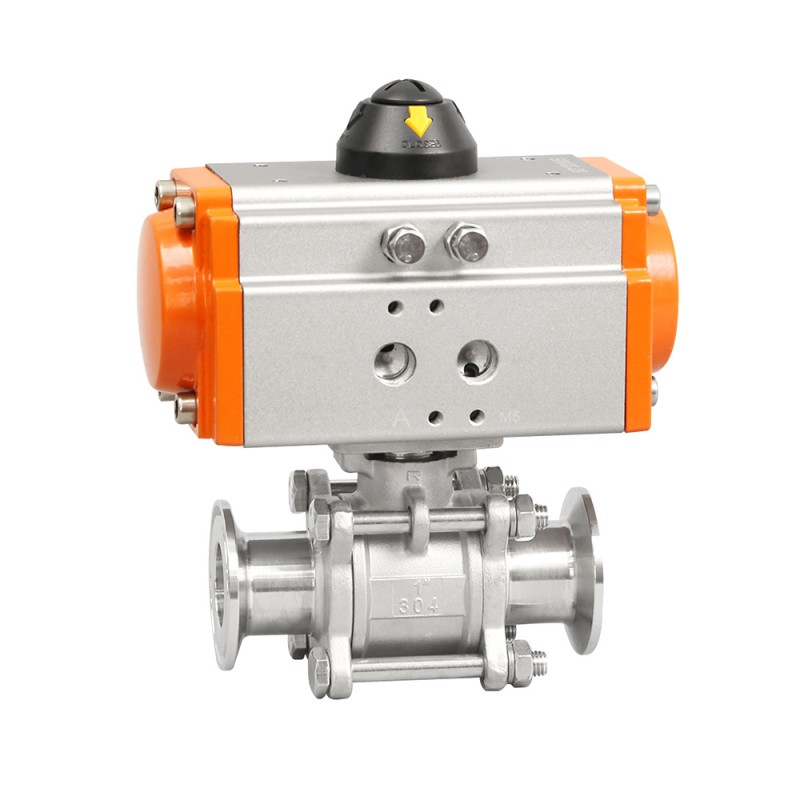

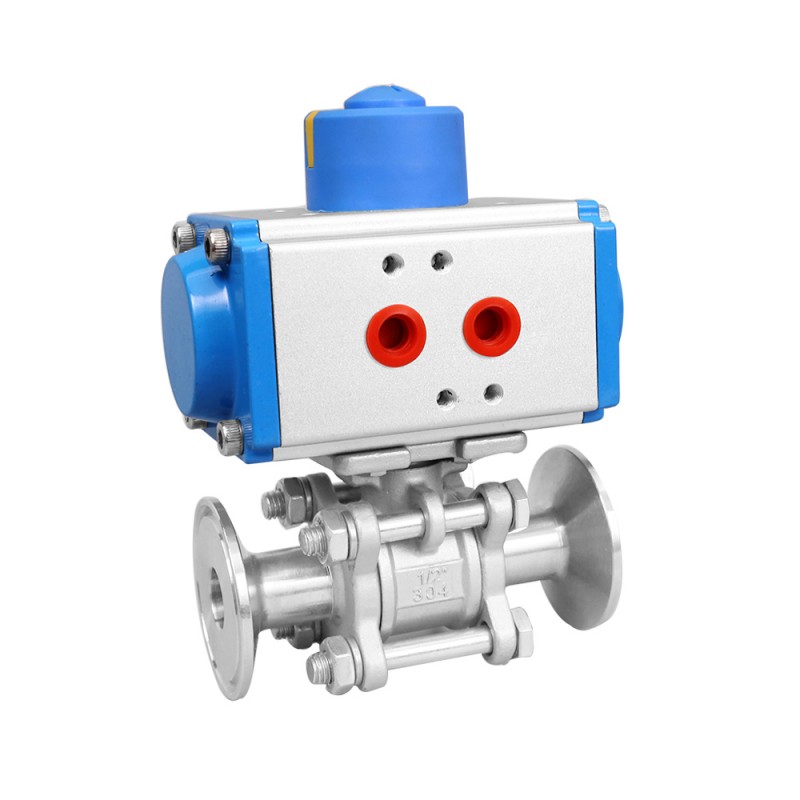

Stainless Steel Manual Tri Clamp Three pieces Pneumatic ball valve

    Model NO.:D016001002012D

    FOB Price:US $294-300 / Piece

    Min. Order:1

    Port:Ningbo, China

    Production Capacity:1000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    <p>Size<strong>:</strong><em>1/4"-4"</em></p> <p>Material<strong>:</strong><em>Casting</em></p> <p>Type<strong>:</strong><em>BALL VALVES, 2-way 3-way 1-way</em></p> <p>Customized support<strong>:</strong><em>OEM, ODM</em></p> <p>Media<strong>:</strong><em>Water</em></p> <p>Screwed Type<strong>:</strong><em>BSPT, NPT, BSPP etc</em></p>
Basic Info

    Model NO.:D016001002012D

    <p>Working Pressure<strong>:</strong><em>1000psi</em></p> <p>Power<strong>:</strong><em>manual</em></p> <p>Application<strong>:</strong><em>General, Industrial Usage, Water Industrial Usage, Househ</em></p>

    HS Code:8413709990


    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China


    Products Name:Stainless Steel Manual Tri Clamp Three pieces Pneumatic ball valve

    High Quality 1000 WOG PSI Tri Clamp Three pieces Pneumatic ball valve
    High Quality Stainless Steel Tri Clamp Three pieces Pneumatic ball valve


    Technical Parameter

    Material   SUS201, SUS304,SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc.
    Size 1/4" -4" (DN6-DN100)
    pressure 1000psi
    Temperature range -20-300 degree C
    connection Butt weld
    sealing PTFE,RPTFE,PPL ETC
    Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
    Certification CE, ISO, our factory has been inspected by leyon and TUV
    Locking With or without
    Capacity to produce 100,000.00pcs/week
    Main products Includes ball valve, check valve, gate valve, strainer, etc.
    Application Suitable for water, oil, air and some corrosive liquid etc
    Buyer's drawings or designs are available
    Package Cartons without pallet
    Cartons with pallet
    Or as buyer's requirements
    Delivery details According to the quantities and specifications of each order
    Normal delivery time is from 30 to 45 days after receiving the deposit

    Product application


    Suitable for water, oil, air and some corrosive liquid etc


    Operating Principle

    Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.



    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products
